Original Keyence
Illustrative image
Photo is an illustration, not a photo of the exact unit you will receive. Need to confirm fitment first? Ask us for photos of the actual unit.

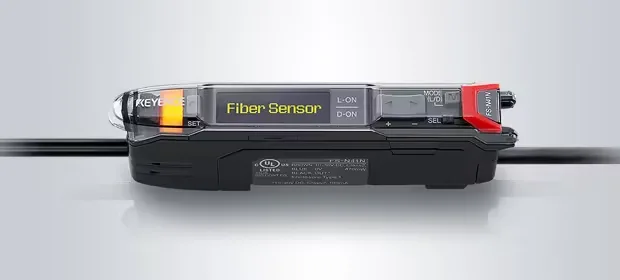

Keyence FS-N11N Fiber Optic Amplifier (Genuine, Sourced to Order)
Original Keyence FS-N11N fiber optic amplifier sourced to order - cable-type main unit, NPN output, same dimensions, DIN rail mounting and pin definition. Reuses your existing FU series fiber heads, no rewiring needed. Supplied by InverterPLC as an independent
Reply within 24 hours · Data sheet and lead time available on request · MOQ negotiable
Product overview
Original Keyence FS-N11N fiber optic amplifier sourced to order - cable-type main unit, NPN output, same dimensions, DIN rail mounting and pin definition. Reuses your existing FU series fiber heads, no rewiring needed. Supplied by InverterPLC as an independent seller, not an authorised Keyence distributor; the 12-month warranty is our own seller warranty, not the manufacturer's.
Technical specifications
| Model | Keyence FS-N11N (NPN, cable-type main unit) |
| Product type | Digital fiber optic amplifier, FS-N series |
| Power supply | 12-24 VDC |
| Output type | NPN open-collector (FS-N11P is the PNP version) |
| Output channel | Single control output |
| Response speed | 4 adjustable modes - TURBO / SUPER / ULTRA / MEGA |
| Output logic | LIGHT-ON / DARK-ON selectable |
| Timer function | On-delay / off-delay adjustable |
| Expandable | Supports FS-N expansion units (FS-N13N / FS-N14N) |
| Protection | Reverse polarity protection, over-current protection |
| Operating temperature | -20 to +55 degrees C |
| Mounting | DIN rail mount |
| Dimensions (H x W x L) | 30.3 x 9.8 x 71.8 mm |
| Weight | Approx. 75 g |
| Condition | Brand-new genuine Keyence unit, sourced to order; lead time confirmed at quotation (typically 1-3 weeks), inspected before shipment |
| Warranty | 12-month seller warranty provided by InverterPLC |
| Listing note | Supplied as a genuine unit sourced to order by an independent seller. We are not an authorised Keyence distributor; Keyence is a registered trademark of its owner and no OEM warranty is implied. |
| Image note | photos on this page are the manufacturer marketing materials (copyright KEYENCE Corporation), shown for product identification only. |
Important model reminder
FS-N series model difference:
- FS-N11N / FS-N11P: main unit, works independently, cable-out version (this product)
- FS-N11CN / FS-N11CP: M8 connector type, NOT a direct swap for cable-out FS-N11N
- FS-N12N / FS-N12P: expansion unit, 1 output, cable type - must connect to a main unit such as FS-N11N
- FS-N13N / FS-N13P: main unit, 2 outputs, cable type; FS-N14N / FS-N14P: expansion unit, 2 outputs, cable type
- FS-N11 fiber amplifier is NOT the same as PS-N11 photoelectric amplifier - they cannot be interchanged
Compatible fiber heads cross-reference
This original Keyence amplifier works with the Keyence FU series fiber optic heads, so you keep your existing fiber cables.
| Type | Fiber head series |
|---|---|
| Through-beam fiber | FU-77, FU-78, FU-85A, FU-86, FU-4F, FU-5F |
| Diffuse reflective fiber | FU-20, FU-21, FU-22X, FU-40, FU-41 |
| Small spot / narrow beam | FU-31, FU-32, FU-33, FU-34 |
| Long distance / coaxial | FU-63, FU-65X, FU-66 |
FAQ
Q: Can I directly replace the original Keyence FS-N11N with this unit?
A: Yes - pin-to-pin compatible for the cable-out FS-N11N / FS-N11P. Same dimensions, DIN rail mounting and pin definition. You can reuse your existing FU fiber optic cables without rewiring.
Q: What is MEGA mode for?
A: MEGA mode improves anti-interference performance and suits dusty, oily or electrically noisy production lines - common in electronic assembly factories across Southeast Asia.
Q: Can the FS-N13N expansion unit be used alone?
A: No. FS-N13N / FS-N14N are expansion units and must be connected behind an FS-N11 main unit.
Q: Can I use this amplifier with other brands of fiber heads?
A: It is designed for the FU series fiber heads (Keyence standard fiber interface). We recommend matching FU fiber heads for best performance.
Q: What are your shipping and warranty terms?
A: 12-month warranty; every unit is tested before shipment. We ship worldwide to factory maintenance teams, automation integrators and trading companies.
Typical applications
- Electronics component detection, small part counting, assembly line presence detection, stable detection in dusty and oily environments
Model listing
| Model supplied | Our part & fitment note |
|---|---|
| Keyence FS-N Series | Original stock part — this listing. Same references as the unit you remove; we check the nameplate revision with you before shipment. |
Supplied as genuine stock as an independent seller — we are not an authorised distributor and no OEM warranty is implied. Send us a photo of your nameplate and we will confirm the exact revision before shipment.
Warranty & shipping
- Warranty: 12 months against manufacturing defects from delivery date.
- Dispatch: current lead time confirmed by email before payment (typically 1–3 weeks)
- Shipping: worldwide by express courier (DHL / FedEx / UPS) or consolidated sea / air freight.
- Power supply: suitable for 50/60 Hz networks; tropicalized build with conformal coating for humidity and salt fog.
- Terms: MOQ negotiable, data sheet and exact lead time confirmed before payment.
Why buyers choose us
- Original stock part — not an aftermarket substitute
- Nameplate and revision checked against your order before shipment
- Inspected and packed for export; photos of the actual unit on request
- 12-month seller warranty and worldwide shipping
